OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera

  • 1
  • 2
  • 3

Brand Name : CNOEC, OPTO-EDU

Model Number : A59.2205-B

Certification : CE|Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Applications : Microscope

Output : USB 2.0

product name : Microscope Accessories

Resolution : 5.0M Pixels

Senser : CMOS

Contact Now

OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera

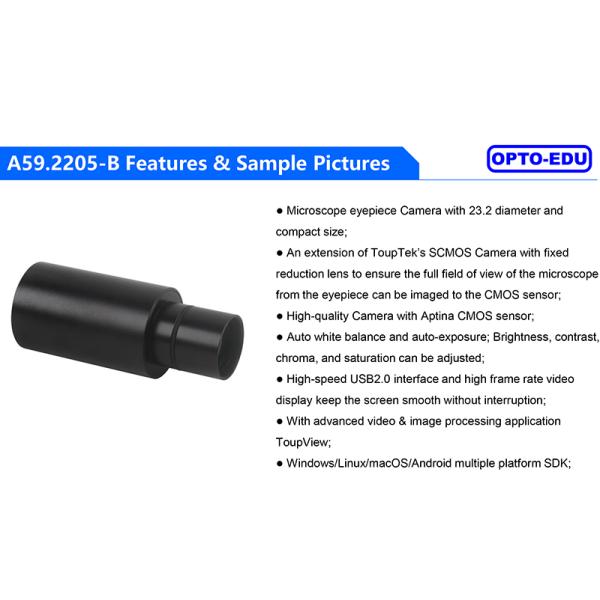

A59.2205-B USB2.0 CMOS Digital Eyepiece Camera, Reduction Lens

ToupTek A59.2205-B is an extension of ToupTek’s A59.2205-B Camera with fixed reduction lens to increase the field of view from the microscope eyepiece tube. The A59.2205-B is still an economic version with simple and compact structure CMOS eyepiece camera. So here, the S means simple and compact, P means plus. USB2.0 is used as the data transfer interface.

The A59.2205-B eyepiece Camera comes with high-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;

Also the A59.2205-B comes with advanced video & image processing application ToupView;

The A59.2205-B can be widely used to transfer the mono or binocular student microscopes to digital microscope.

With 23.2 to 30mm or 23.2 to 30.75 convert ring, the A59.2205-B Camera can also change the stereo microscope to digital stereo microscope.
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
Order Code Sensor & Size(mm) Pixel(μm) G Responsivity Dynamic range SNRmax FPS/Resolution Binning Exposure
05100KPB 5.1M/IMX335©
1/2.8“ (5.18x3.89)		 2.0x2.0 505mV
70dB
43dB		 26@2592x1944
26@1280x960
26@640x480		 1x1
1x1
1x1		 0.1-2000 ms
Other Specification
Spectral Range 380-650nm (with IR-cut Filter)
White Balance Auto White Balance
Color Technique N/A
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System Still Picture and Movie
Data Format MJPEG
Cooling System* Natural
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port
Software Environment
Operating System Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:2GB or More
USB Port:USB2.0 High-speed Port
Display:17” or Larger
CD-ROM
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
Standard Camera Packing List
A Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo
B Gift box L:15cm W:15cm H:10cm (0.25~0.26Kg/ box)
C One SPCMOS series eyepiece camera
D High-Speed USB2.0 A male to mini B 5-pin male gold-plated connectors cable /1.5m
E CD (Driver & utilities software, Ø8cm)
Optional Accessory
F 108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube
G 108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube
H 108017(Dia.23.2mm to 31.75mm Ring)/ Adapter rings for 31.75mm eyepiece tube
I Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
OPTO EDU A59.2205-B Usb 2.0 Cmos Microscope Eyepiece Camera
