OPTO EDU A12.2610 Laboratory Biological Microscope

Name: OPTO EDU A122610 Laboratory Biological Microscope
Brand: OPTO-EDU
Price: 1 USD

Best OPTO EDU A12.2610 Laboratory Biological Microscope wholesale

Brand Name : OPTO-EDU

Model Number : A12.2610

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Eyepiece : WF10x/25mm, High Eyepoint, Diopter Adjustable

Objectives : Infinity Plan Semi-APO Objective (F.N.25)

Head : Trinocular Head, Inclined 30°, Rotatable 360°

Nosepiece : 6 Holes Nosepiece, Inward

Working Stage : Double Layer Rackless Mechanical Stage

Condenser : Swing-out Condenser N.A.0.9/0.13, With Scale, Can Be Locked,

Koehler Illumination : 5W-LED Illumination

C-mount : 0.5x C-Mount, Focus Adjustable

Filter : Forested Glass Filter

LCD : LCD Screen ECO (Optional Only For LED Stand)

Contact Now

2025 Brand New Research Level Laboratory Microscope With Modular Structure Design
Large Size Trinocular Head With Eyepiece Tube Dia.30mm, Light Split E100:P0/E20:P80/E0:P100
Super Wide Field SWF10x/22mm Eyepiece Dia.30mm Diopter Adjustable
Rackless Large Mechanical Stag 182x140mm/77x52m With Double Slide Holder
Swing Out Condenser N.A. 0.9/0.13 + High Brightness 6V30W Halogen Koehler Illumination

OPTO EDU A12.2610 Laboratory Biological Microscope

Coarse and fine precise adjustment system(scale 1μm), Coarse stroke 30mm

Focusing upper limiting device

280x160mm Rackless integrated

Large size Mechanical stage, travel range 80x52mm

▶ Management System(Optional)

1. Only for LED illumination

2. LCD display

3. Power-on shows customer logo

4. Current magnification of objective display

5. Working brightness display, current brightness

memory

6. Working time setting

7. LED bulb color temperature adjustable within

3500K-6000K

8. Brightness adjustment automatically upon

different objectives

▶ Brand new Koehler illumination system ensures excellent optical performance

5W LED Illumination

50W/100W Halogen Illumination

Research Laboratory Biological Microscope		A12.2610 -Lite	A12.2610	Cata. No.
Eyepiece	WF10x/25mm, High Eyepoint, Diopter Adjustable	●●	●●	A51.2621-1025
Eyepiece	WF10x/23mm, High Eyepoint, Diopter Adjustable	○○	○○	A51.2621-1023
Infinity Plan Objective (F.N.25)	PLAN 4X /0.11, W.D.12.1mm	●		A52.2610-4
	PLAN 10X /0.25, W.D.10.0mm	●		A52.2610-10
	PLAN 20X /0.45, W.D.3.33mm	●		A52.2610-20
	PLAN 40X /0.70 (S), W.D.2.61mm	●		A52.2610-40
	PLAN 100X /1.25 (S,Oil), W.D.0.25mm	●		A52.2610-100
	PLAN 2X /0.06, W.D.7.2mm	○		A52.2606-2
Infinity Plan Semi-APO Objective (F.N.25)	PLAN S-APO 4X /0.10, W.D.16.2mm		●	A52.2611-4
	PLAN S-APO 10X /0.30, W.D.9.6mm		●	A52.2611-10
	PLAN S-APO 20X /0.45, W.D.2.8mm		●	A52.2611-20
	PLAN S-APO 40X /0.70 (S), W.D.0.55mm		●	A52.261140
	PLAN S-APO 100X /1.25 (S,Oil), W.D.0.21mm		●	A52.2611-100
Head	Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 3 Light Split Ratio: E100:P0, E80:P20, E0:P100	○	●	A53.2610-T18
Head	Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 2 Light Split Ratio: E100:P0, E80:P20	●	○	A53.2610-T13
Nosepiece	6 Holes Nosepiece, Inward	●	●	A54.2610-N6
Working Stage	Double Layer Rackless Mechanical Stage, Size 280x160mm, Moving 80x52mm, Double Slide Holder	●	●	A54.2601-AT280
Condenser	Swing-out Condenser N.A.0.9/0.13, With Scale, Can Be Locked,	●	●	A56.2614-C11
Polarizing	Analyzer, Put In Slide Insert To Hole On Nosepiece Polarizer, Put On Stand Light Collector	○	○	A5P.2601-BK

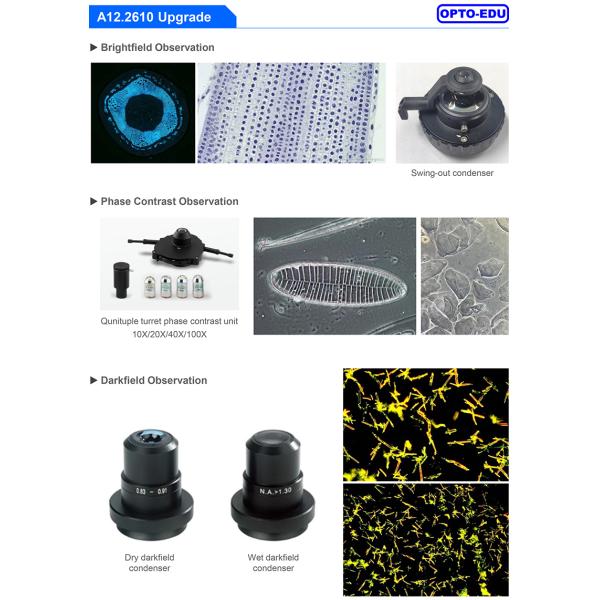

Dark Field	Dry Dark Field Condenser, Apply For 4x - 40x Objective	○	○	A5D.2610+BK
Dark Field	Immersion Dark Field Condenser, Apply For 100x Objective	○	○	A5D.2610-BKW
Phase Contrast	5 Holes Phase Contrast Conenser, With Infinity Plan Phase Contrast Objective 10x,20x,40x,100x, Centering Telescope 10x	○	○	A5C.2603-BS
LED Fluorescence	LED Fluorescent Illuminator, 2 Filters B/G, With Barrier, 5W LED Bulb Move With Filter	○	○	A5F.2610-2
	LED Fluorescent Illuminator, 4 Filters B/G/Uv/U, With Barrier, 5W LED Bulb Move With Filterarrier	○	○	A5F.2610-4
	Fluorescent Filters, FITC, DAPI, TRITC, Cy5, FishAqua, FishGreen, etc	○	○	A5F.2620
	Fluorescent Filters, Chroma B, G, UV	○	○	A5F.2621
Koehler Illumination	5W-LED Illumination	●	●	A56.2612-5WL
	12V/50W Halogen Lamp	○	○	A56.2613-12V50WL
	12V/100W Halogen Lamp	○	○	A56.2613-12V100WL
C-mount	0.5x C-Mount, Focus Adjustable	●	●	A55.2601-05
	0.35x C-Mount, Focus Adjustable	○	○	A55.2601-35
	0.75x C-Mount, Focus Adjustable	○	○	A55.2601-75
	1.0x C-Mount, Focus Adjustable	○	○	A55.2601-10
Filter	Forested Glass Filter	●	●	A56.2616-RSN
	Blue/ Green/ Yellow	○	○	A56.2616-RSB
	Green Filter	○	○	A56.2616-RSG
	Yellow Filter	○	○	A56.2616-RSY
LCD Screen ECO (Optional Only For LED Stand)	LCD Screen Optional For A12.2610 LED Stand, Function: 1,Show Customer Logo； 2,Show Objective Magnification； 3,Show & Remember Brightness For Each Objective； 4,Set ECO Timer； 5,Adjust Light Color Temperature 3500K--6000K.	○	○	A56.2661

▶ A53.2610-T13 (For A12.2610-Lite)

Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 2 Light Split Ratio: E100:P0, E80:P20

▶ A53.2610-T18 (For A12.2610)

Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance 48-76mm, 3 Light Split Ratio: E100:P0, E80:P20, E0:P100

▶ A52.2611 Infinity Plan Semi-APO Objective (F.N.25)
